Type B Z140B-D5.5-EX120 Ceramic Pipe Guide for Small Hole Drilling Mechine

  • Ref No.: Z140B-D5.5-EX120-010
  • OEM No.: Z140B-D5.5-EX120-010
  • Size: D8/5.5mm x 150mmL, EX+120mmL
  • Brand: Small Hole Drilling
  • 产品描述: Type B Z140B-D5.5-EX120 Ceramic Pipe Guide for Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • 在线订购   邮箱
产品详情:

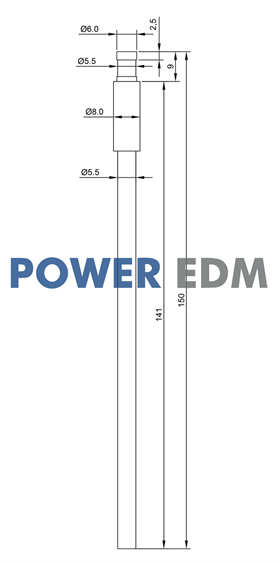

Ceramic Pipe Guide

B Type Extension 120mm 5.5mm

Available ID=0.1mm-3.30mm

Body 1 OD=8.0mm

Body 2 OD=5.5mm

Shaft OD=5.5mm

Extension Length L=120mm

Total L=150mm

Model NO.

ID (mm)

Extension L

Z140B-D5.5-EX120-010

Φ0.10mm

120mm

Z140B-D5.5-EX120-020

Φ0.20mm

120mm

Z140B-D5.5-EX120-030

Φ0.30mm

120mm

Z140B-D5.5-EX120-040

Φ0.40mm

120mm

Z140B-D5.5-EX120-050

Φ0.50mm

120mm

Z140B-D5.5-EX120-060

Φ0.60mm

120mm

Z140B-D5.5-EX120-070

Φ0.70mm

120mm

Z140B-D5.5-EX120-080

Φ0.80mm

120mm

Z140B-D5.5-EX120-090

Φ0.90mm

120mm

Z140B-D5.5-EX120-100

Φ1.00mm

120mm

Z140B-D5.5-EX120-110

Φ1.10mm

120mm

Z140B-D5.5-EX120-120

Φ1.20mm

120mm

Z140B-D5.5-EX120-130

Φ1.30mm

120mm

Z140B-D5.5-EX120-140

Φ1.40mm

120mm

Z140B-D5.5-EX120-150

Φ1.50mm

120mm

Z140B-D5.5-EX120-160

Φ1.60mm

120mm

Z140B-D5.5-EX120-170

Φ1.70mm

120mm

Z140B-D5.5-EX120-180

Φ1.80mm

120mm

Z140B-D5.5-EX120-190

Φ1.90mm

120mm

Z140B-D5.5-EX120-200

Φ2.00mm

120mm

Z140B-D5.5-EX120-210

Φ2.10mm

120mm

Z140B-D5.5-EX120-220

Φ2.20mm

120mm

Z140B-D5.5-EX120-230

Φ2.30mm

120mm

Z140B-D5.5-EX120-240

Φ2.40mm

120mm

Z140B-D5.5-EX120-250

Φ2.50mm

120mm

Z140B-D5.5-EX120-260

Φ2.60mm

120mm

Z140B-D5.5-EX120-270

Φ2.70mm

120mm

Z140B-D5.5-EX120-280

Φ2.80mm

120mm

Z140B-D5.5-EX120-290

Φ2.90mm

120mm

Z140B-D5.5-EX120-300

Φ3.00mm

120mm

Z140B-D5.5-EX120-310

Φ3.10mm

120mm

Z140B-D5.5-EX120-320

Φ3.20mm

120mm

Z140B-D5.5-EX120-330

Φ3.30mm

120mm
